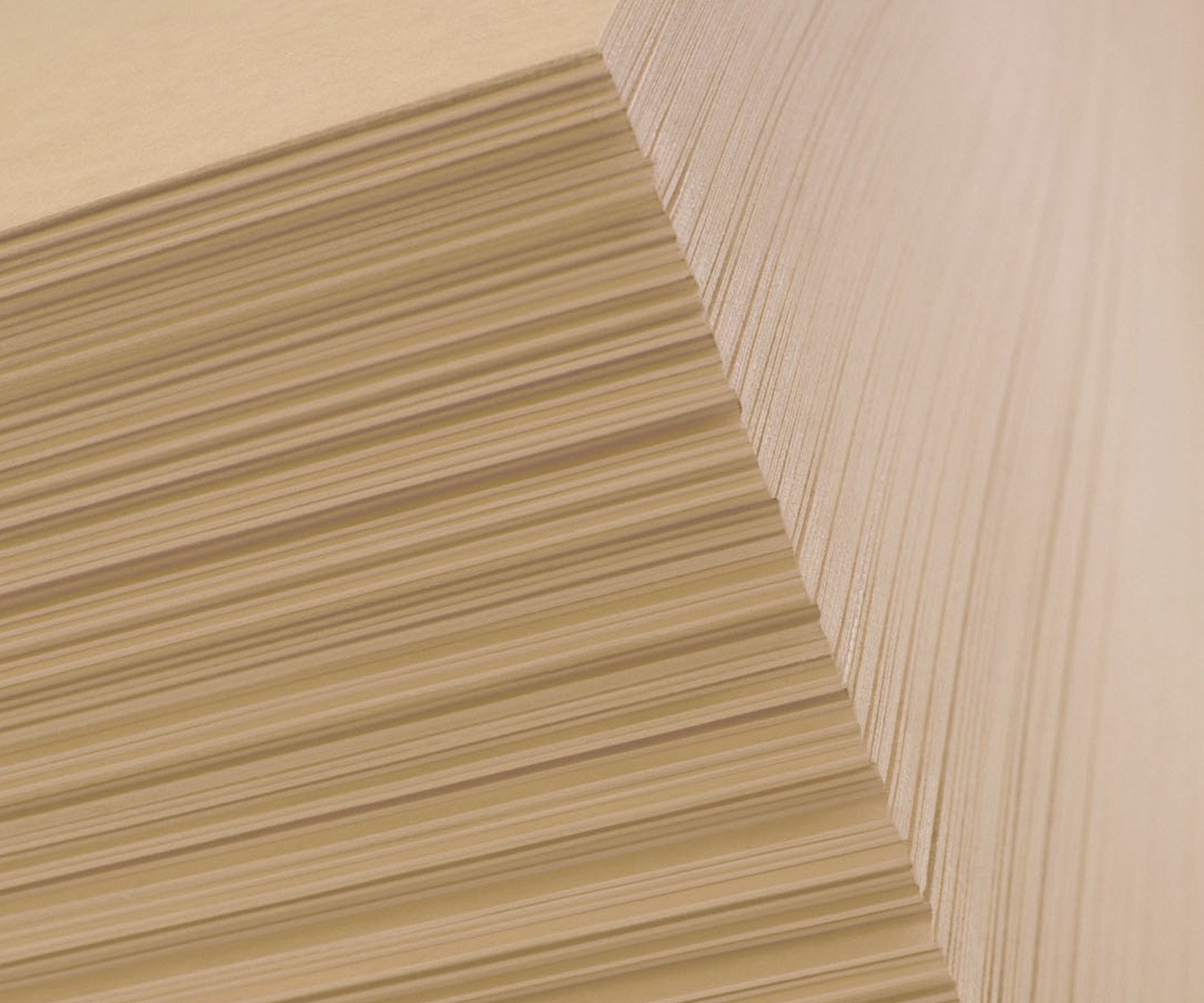

Low Density Board
Low Density Board
Lower density board engineered with enhanced elasticity and faster oil impregnation (grades: Form-Val, Hi-Val). Suited for barriers and cylinders.
Priced per requirement — tell us grade, width, thickness and quantity and we quote against it.
Technical specifications
| Composition | 100% unbleached sulphate cellulose, pressed |
|---|---|
| Standard | IEC 60641 |
| Thermal class | Class A (105 °C) in oil; thermally upgraded and aramid grades higher |
| Thickness range | 0.5–8.0 mm typical; laminated to 100 mm |
| Density | 0.90–1.30 g/cm³ depending on grade |
| Medium | Designed for oil-immersed service; dried and impregnated in the transformer |
| Machining | Sawn, punched, milled, drawn and moulded to drawing |
| Form | Sheets and rolls; finished parts to drawing |
| Compliance | RoHS, REACH; mill test certificate with every consignment |
Typical values for this material class, given as a guide. The datasheet carries the property table, test methods and tolerances for the grade and is the governing document.
Overview
Lower density board engineered with enhanced elasticity and faster oil impregnation (grades: Form-Val, Hi-Val). Suited for barriers and cylinders.
Sizes, packing and supply
Supplied to your specification — grade, thickness, width and quantity, cut and slit to your dimensions rather than sold from fixed stock sizes. Mill test certificate and certificate of conformity accompany every shipment.
Standards and compliance
- Manufactured to IEC 60641 / IEC 60554 where the grade is covered
- Mill test certificate and certificate of conformity with every consignment
- RoHS and REACH declarations on request
Third-party testing can be arranged where a specification demands independent verification.
Applications
Power transformers
Barriers, blocks, end fill and clamping insulation carrying the winding load in oil-filled units.
Distribution transformers
Spacers, washers and layer barriers where the geometry is repeated in volume.
Traction and rectifier
Structural insulation in units that see vibration and sustained thermal load.
Repair and rewind
Replacement barrier and support material machined to the original drawing.
Quality and inspection
Every consignment is inspected before shipment and supplied with its mill certificate. For repeat programmes we hold the approved specification on file, so a reorder repeats a known outcome rather than reopening the conversation.
Frequently asked questions
Which grade should I specify?
It depends on whether the part carries load or has to be formed. High-density board is the structural choice; low-density is chosen where elasticity and faster oil impregnation matter. Send the drawing and the duty and we will recommend against it rather than leave you to pick from a table.
Can you machine parts to drawing?
Yes. Sawn, punched, milled, drawn and moulded parts are supplied finished to your drawing, dried and packed for winding.
Does it need drying before use?
Board is supplied dried and wrapped, but it is hygroscopic. The transformer's own drying and impregnation cycle governs; handle and store it sealed until it goes into the tank.
What thicknesses are available?
Typically 0.5 to 8 mm as pressed, and up to around 100 mm laminated. Ask if you need something outside that.
Datasheet
Full property tables, test methods and tolerances for Low Density Board are on the datasheet. Request it and we will send the current revision.
